TOOL-LESS® Closures

Overview

Process industry piping engineers and equipment designers, in response to safety concerns and the need to increase productivity and reduce downtime, are revising their specifications to require extremely quick opening type closures/manways that do not require tools. Anticipating this trend, Tube Turns®’ TOOL-LESS® closure was introduced in 2008, with great success. Applications include scraper traps, filters, strainers, separators/coalescers, terminal manifolds, meter provers, distillation towers, storage tanks or any pressure vessel requiring frequent access.

The TOOL-LESS® closure/manways satisfies the design requirements of ASME B31.3, B31.4, B31.8, and Section VIII, Div. 1. The entire design has been verified through proven stress calculations, the latest finite element analysis software, and strain gauge testing, establishing a high level of confidence in the structural integrity of the TOOL-LESS® closure. In addition, fatigue analysis based on severe field condition data has been successfully conducted on all closure sizes and classes. TOOL-LESS® closures/manways are available in Carbon Steel, Stainless Steel, and other alloys, along with a choice of elastomer lip seal materials to meet the user’s temperature and process compatibility requirements.

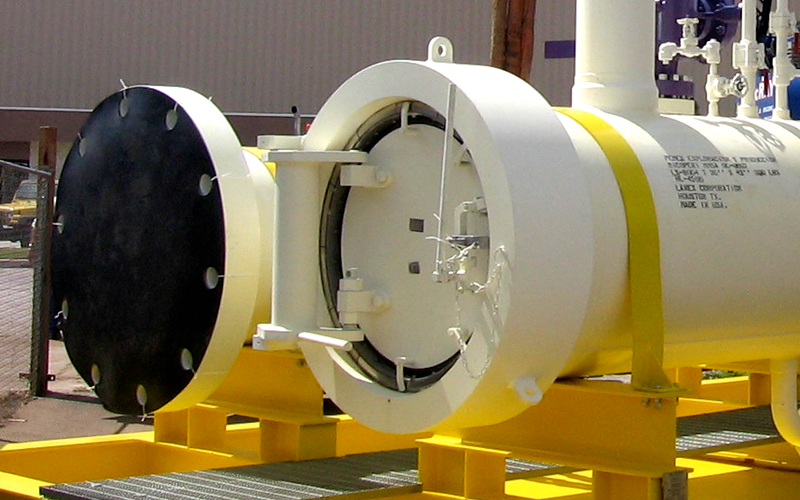

Fast, Easy Operation

TOOL-LESS® operation is smooth and direct and even the largest unit can be opened or closed in a matter of seconds by one person, and as the name implies, without special tools. Complete installation, operating and maintenance instructions are furnished with each TOOL-LESS® closure.

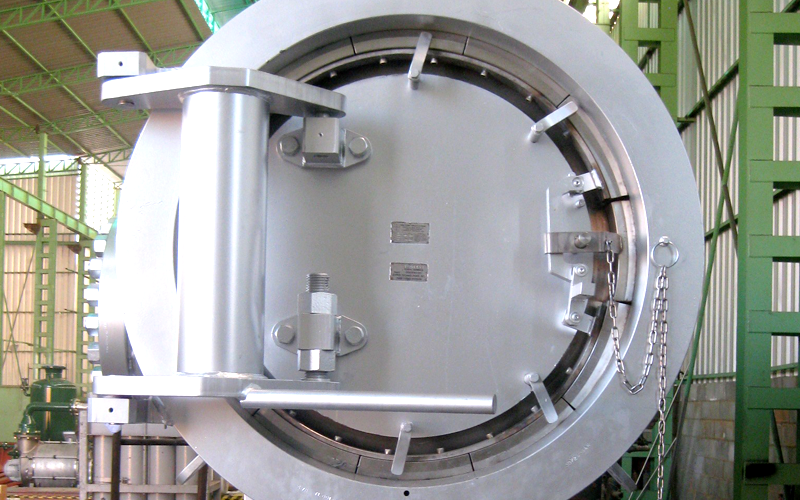

Safety

Our Pressure Warning Device assures both pressure warning and mechanical locking of the closure prior to commencement of operation. The Pressure Warning System alerts the operator to any residual pressure inside the vessel should the operator inadvertently attempt to open the closure before all pressure has been relieved. The TOOL-LESS® closure safety system meets the requirements of UG-35 for quick-opening closures.
